Intraoral Occlusal Adjustment and Polishing for Modern Ceramic Materials

John C. Kois, DMD, MSD | Yada Chaiyabutr, DDS, DSc, MSD

During the past decade, newer dental materials, such as lithium disilicate and zirconia-based ceramic, have become widely used along with the technology used to process them—computer-aided design (CAD) and computer-aided manufacturing (CAD/CAM). Lithium disilicate is common for use in all-ceramic restorations both as a core and as a monolithic full-contour restoration, with successful restorations fabricated by using a pressed technique or milling through a CAD/CAM system.¹ Lithium disilicate can be acid-etched and bonded to the tooth structure, giving it a clinical advantage that it has been shown to exhibit over zirconia. As a result, lithium-disilicate restorations demonstrate good durability, with fewer restorations chipping after short periods in service.^1,2-4

Zirconia-based ceramics have excellent mechanical properties due to their unique transformative abilities and toughening capabilities. Dentists generally use three systems: 3 mol% yttria-stabilized tetragonal zirconia polycrystals (3Y-TZP), magnesia-partially stabilized zirconia (Mg-PSZ), and zirconia-toughened alumina (ZTA).^5,6 Due to zirconia’s poor translucency, zirconia-based ceramics were veneered with feldspathic porcelain to better match natural teeth. Studies reported that these restorations fractured after short service periods and under low loading forces.^7,8 Chipping of veneering porcelain was common, and framework fractures were observed in the pre-sintered stage of zirconia.^9,10 To address these chipping problems with the veneering porcelain, monolithic full-contour zirconia with improved opacity was introduced as an alternative restorative material.^11,12 Because monolithic zirconia is harder than feldspathic porcelain, the excessive wear of enamel when in function opposite zirconia has been attributed to its hardness relative to feldspathic porcelain. Recent studies, however, have revealed enamel wear could be significantly affected by the amount of zirconia surface finish.^13-17 Polished zirconia resulted in the least wear of opposing enamel, even after simulated aging.15,16 Glazed zirconia revealed higher enamel wear rates than that of polished zirconia because the thin glaze layer disappeared after a period of function.15,16 Consequently, a rough zirconia surface appeared to act as an aggressive abrasive. Specific clinical protocols for surface finishing after occlusal adjustment of all-ceramic restorations should be considered.

In general, chairside occlusal adjustment of all-ceramic restorations involves selective grinding and finishing or polishing procedures. This is done not only to minimize enamel wear, but also to prevent ceramic fracture or failure. Surface imperfections, such as grooves and scratches, created by natural grinding forces can act as stress initiators in the materials. As a result, materials can fracture, starting with a crack followed by crack propagation at stress levels that are well below the yield strength. Surface polishing can reduce this effect and is influenced by a number of factors, such as the structure and mechanical properties of the ceramic, the size and shape of the abrasive, the difference in hardness between the abrasive and the ceramic, the physical properties of the material that is used to carry the abrasive material, and what type of lubrication is used during the application of the abrasive.¹⁸

Surface roughness of ceramic materials depends on its homogeneity and microstructure (grain size).^5,6 The grinding rotary instrument for zirconia contains a highly dense diamond abrasive. Although relatively hard, zirconia is still not as hard as alumina and diamond. The rotary instrument should be changed sequentially from coarse (large grain size) to fine (small grain size) diamond abrasives (Figure 1 and Figure 2) to achieve the maximum smooth surface. Larger diamond grains have higher abrasiveness for ceramic, which also increases the amount of surface roughness.

Occlusal adjustment on ceramic restorations should be performed with a fine diamond bur at slow speed and a water coolant to minimize the risk for crack propagation. Polished, anatomically contoured restorations may be indicated in high load-bearing areas; however, glazing the restorations should be avoided unless high esthetics is needed. Recently, a polyurethane bur impregnated with fine diamond particles was introduced into the market. A study examined the effects of occlusal adjustment on the surface roughness after occlusal adjustment of three ceramic crowns: feldspathic, lithium disilicate, and zirconia ceramic. A silicone point polisher and two different polyurethane rubber polishers were used. All occlusal adjustments and polishing were performed continuously for 20 seconds on the flat occlusal surfaces of the crowns at 10,000 rpm. The results revealed that polishing with fine polyurethane rubber polisher burs led to the least surface roughness (Figure 3 through Figure 8).¹⁹ Friction-grip brownie points work similarly; however, the silicone point would wear faster.

For polishing procedures, an application of polishing paste can be used at the final polishing step. The most common abrasives found in polishing pastes include:
• Aluminum oxide
• Pumice
• Silica
• Silicon dioxide
• Tin oxide
• Diamond particles

In general, aluminum-oxide pastes are safe for porcelains.20 Aluminum and aluminum oxide can both be used on stain-free surfaces. However, if ceramic restorations need to be polished to improve shine or luster, a product containing diamond particles should be chosen. Always follow the manufacturer’s recommendations for specific polishing agents to ensure proper results and success; see Case 1 (Figure 9 through Figure 13) and Case 2 (Figure 14 through Figure 20).

Excellent clinical performance depends more on surface finish than the type of ceramic used. Grinding while performing occlusal adjustment adversely affects the mechanical properties of lithium disilicate and zirconia ceramic. When grinding on ceramics, lower temperatures (air-water coolant) and a less-aggressive diamond grit (<150 µm) are recommended to minimize the risk for crack propagation. Finish or polish the ceramics with fine polyurethane rubber polishing burs.

We would like to thank Steve McGowan from Arcus Dental Laboratory for providing the laboratory work for these cases.

John C. Kois, DMD, MSD and Yada Chaiyabutr, DDS, DSc, MSD, have no conflicts of interest to disclose relative to this article.

John C. Kois, DMD, MSD
Founder and Director of Kois Center
Seattle, Washington

Yada Chaiyabutr, DDS, DSc, MSD
Research Director of Kois Center
Seattle, Washington

Figures and Images

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Figure 15

Figure 16

Figure 17

Figure 18

Figure 19

Figure 20

Figure 1

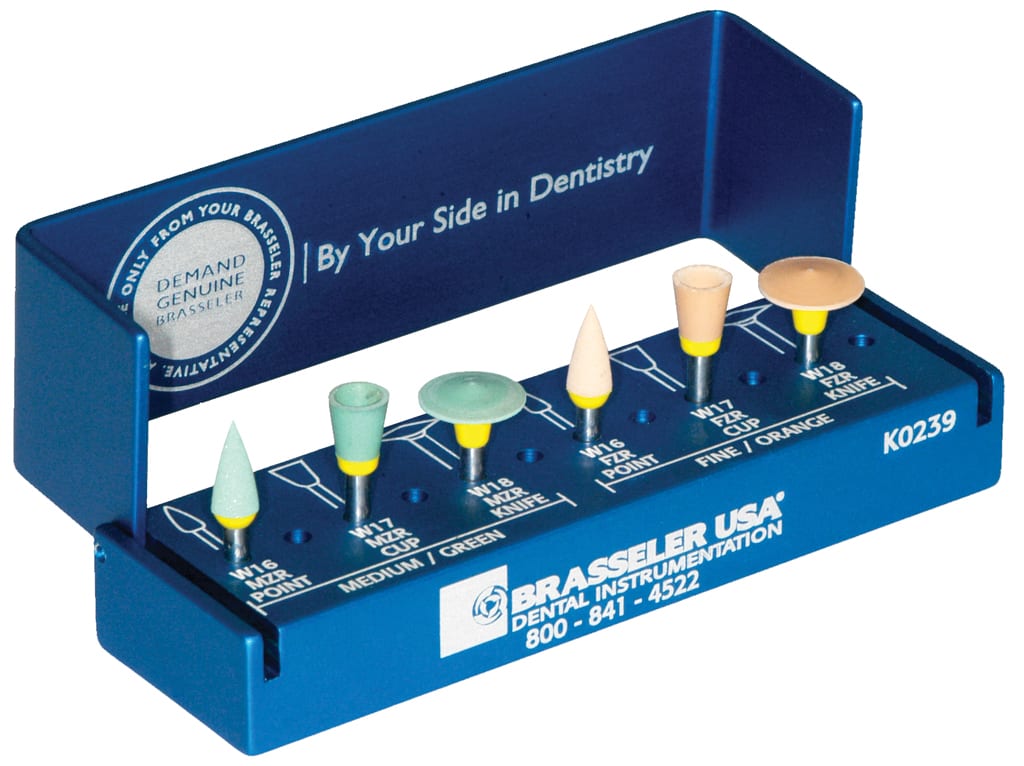

Polyurethane polishing kit for zirconia. Recommended speed is 5,000 rpm to 7,000 rpm with water spray.

Figure 2

Polyurethane polishing kit for lithium disilicate. Recommended speed is 5,000 rpm to 7,000 rpm with water spray.

Figure 3

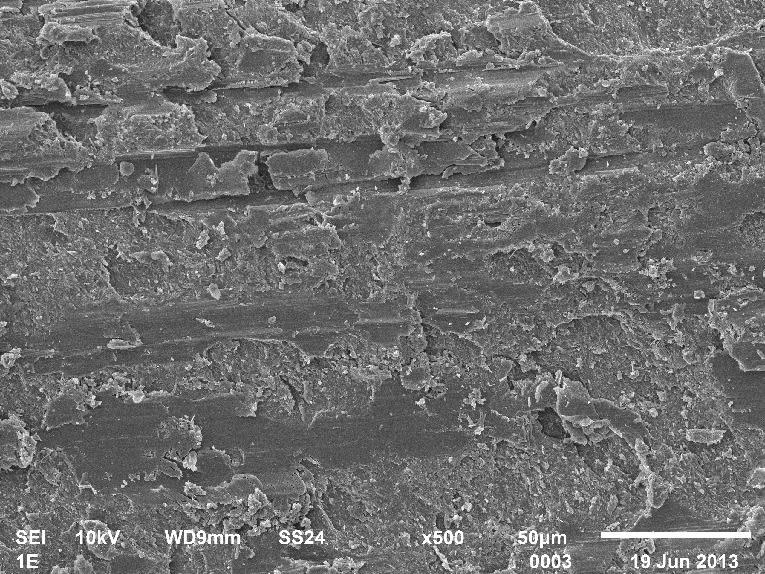

SEM micrographs of the fine-diamond (grit size 30 μm) adjustment surfaces of feldspathic, lithium disilicate, and zirconia (original magnification x500), respectively.

Figure 4

SEM micrographs of the fine-diamond (grit size 30 μm) adjustment surfaces of feldspathic, lithium disilicate, and zirconia (original magnification x500), respectively.

Figure 5

SEM micrographs of the fine-diamond (grit size 30 μm) adjustment surfaces of feldspathic, lithium disilicate, and zirconia (original magnification x500), respectively.

Figure 6

SEM micrographs of the polished surfaces with fine polyurethane rubber polishers of feldspathic, lithium disilicate, and zirconia (original magnification x500), respectively.

Figure 7

SEM micrographs of the polished surfaces with fine polyurethane rubber polishers of feldspathic, lithium disilicate, and zirconia (original magnification x500), respectively.

Figure 8

SEM micrographs of the polished surfaces with fine polyurethane rubber polishers of feldspathic, lithium disilicate, and zirconia (original magnification x500), respectively.

Figure 9

Monolithic full-contour lithium-disilicate crowns on teeth Nos. 8 and 9 in premature contact. Fremitus was noted with digital palpation.

Figure 10

Lingual surface marked with articulating paper.

Figure 11

The articulating paper indicated premature contact.

Figure 12

Occlusal adjustment on teeth Nos. 8 and 9 with a fine-grit diamond bur (The Brasseler USA KS4, Brasseler USA Dental, brasselerusa.com) at a slow speed of 50,000 rpm with water spray.

Figure 13

A polyurethane rubber-point polisher bur (Brasseler USA Dental) was used to polish the surface intraorally, then the occlusion was reevaluated.

Figure 14

Initial occlusal view of teeth Nos. 30 and 31 at initial presentation. Note several crack lines and patient was symptomatic with cold sensitivity.

Figure 15

Initial facial view of teeth Nos. 30 and 31 at initial presentation. Note cervical biocorrosion.

Figure 16

Occlusal view of teeth Nos. 30 and 31 after preparation. Note crack lines present on occlusal surface.

Figure 17

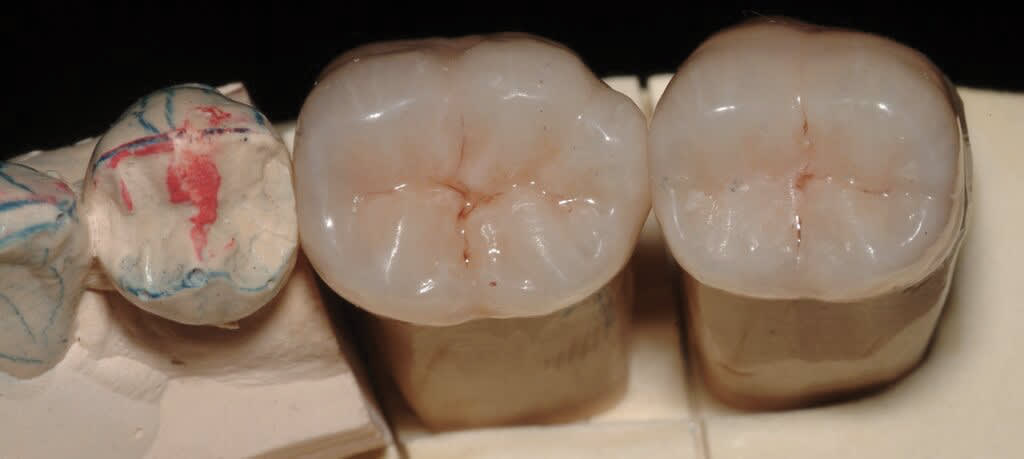

Monolithic, full-contour, lithium-disilicate, full-contour crowns fabricated and polished prior to additional staining and glazing.

Figure 18

Monolithic, full-contour, lithium-disilicate, full-contour crowns fabricated and polished prior to additional staining and glazing.

Figure 19

Final restorations on teeth Nos. 30 and 31 adjusted and polished with a polyurethane rubber-point polisher bur.

Figure 20

Final restorations on teeth Nos. 30 and 31 adjusted and polished with a polyurethane rubber-point polisher bur.
